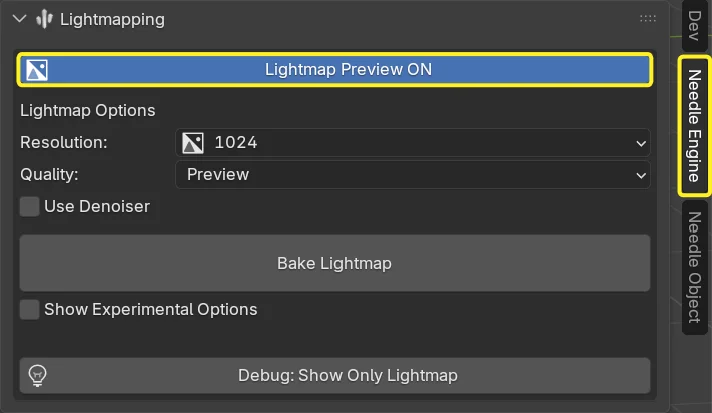

--- title: Lightmapping in Blender description: Bake beautiful lighting for optimal web performance --- # Lightmapping Bake realistic lighting and shadows directly in Blender and export them to the web for stunning visuals with excellent performance. --- ## What is Lightmapping? Lightmapping is the process of pre-calculating lighting and baking it into textures. This gives you: **Benefits:** - ✨ **Photorealistic lighting** - Bake complex lighting calculations once - ⚡ **Great performance** - No real-time lighting calculations needed - 🎨 **Artistic control** - Fine-tune lighting in Blender - 📦 **Small file sizes** - Compressed lightmap textures - 🔄 **Multiple instances** - Each instance can have unique lightmaps **Use Cases:** - Architectural visualization - Product showcases with dramatic lighting - Art galleries and museum experiences - Any scene with static lighting --- ## Requirements **Before you start:** - At least one light in your scene - Objects marked as `Lightmapped` in the **Needle Object** panel - Blender's lighting set up the way you want it :::tip Download Example Get the complete lightmapping example to learn from: [lightmaps.blend](https://engine.needle.tools/downloads/blender/lightmaps.blend) ::: --- ## Quick Start ### Step 1: Mark Objects for Lightmapping **For Mesh & Light Objects:** 1. Select your object 2. Open the **Needle Object** panel (right Viewport Sidebar) 3. Enable the `Lightmapped` checkbox ![Enable lightmapping on objects](/blender/lightmapping-object.webp "2x") :::tip What to Lightmap - Mark static geometry (buildings, furniture, environments) - Mark lights that should affect lightmaps - **Don't** mark dynamic objects that move ::: :::tip Use `Lightmap Scale` to control how much texel space an object occupies in the final lightmap. Large objects with simple lighting can often use a lower scale to save texture space. ::: --- ### Step 2: Configure Settings Open the **Needle Engine** panel (right Viewport Sidebar) and toggle the **Lightmap Preview** button to activate lightmaps. ![Lightmap settings](/blender/lightmap-settings.webp "1.5x") Here you can adjust the resolution and baking quality of the final lightmap texture. Baking many objects can take a while, so for quick previews of your lighting setup, use **Preview** quality with a low resolution like 512. :::tip To inspect the lightmap baking result, click **Debug: Show Only Lightmap** to display only the lightmap texture on your objects instead of the full material. ::: --- ### Step 3: Bake Lightmaps 1. Click the **Bake Lightmap** button 2. Wait for baking to complete 3. Lightmaps are automatically exported with your scene :::tip For Lightmap baking, we use the Cycles renderer. So configure your **Cycles Render Device** in Blender **Preferences → System** for a much faster baking process. - **OptiX** for NVIDIA GPUs - **HIP** for AMD GPUs - **oneAPI** for Intel GPUs ::: **What Happens:** - Needle Engine generates lightmap UVs automatically (no manual UV unwrapping needed!) - Blender bakes lighting into textures - Textures are saved in your project - Export includes lightmap data --- ## Lightmap Settings Explained ### Lightmap Texture Resolution **`Resolution`** - Texture resolution of the baked lightmap - Higher = better quality, larger files - Lower = faster baking, smaller files - **Recommended:** 1024-4096 (based on the scene size) ### Quality **`Samples`** - Render samples for baking - More samples = cleaner results, slower baking - Fewer samples = faster but noisier - **Recommended:** 128-512 for production **`Use Denoiser`** - Remove noise from baked lightmaps - Enable for cleaner results - Requires Blender's denoiser --- ## Automatic UV Generation Needle Engine's lightmapping plugin automatically generates lightmap UVs - no manual unwrapping required! **How it works:** - Analyzes your geometry - Creates optimal UV layouts - Packs efficiently into texture space - Handles multiple instances intelligently **This means:** - ✅ No second UV channel needed - ✅ Works with complex models - ✅ Supports instanced objects with unique lighting --- ## Best Practices ### Scene Setup **Lighting:** - Use area lights for soft, natural lighting - Combine sun light with fill lights for outdoor scenes - Add rim lights to highlight edges - Consider color temperature (warm/cool) **Geometry:** - Ensure clean topology (no overlapping faces) - Lightmap static architecture, not characters - Use separate objects for elements that need different lightmap resolution **Performance:** - Only lightmap objects that benefit from it - Use lower resolution for background elements - Compress textures in production builds --- ### Troubleshooting **Black or dark lightmaps:** - Check that lights are marked as `Lightmapped` - Increase render samples - Verify normals are correct (consistent face orientation) **Seams or artifacts:** - Check for overlapping UV islands - Ensure geometry is watertight (no gaps) **Too slow:** - Reduce lightmap resolution - Reduce render samples - Baking many objects can be slow — consider combining objects where possible - Bake in sections (bake one object at a time) **File too large:** - Lower lightmap resolution - Reduce `Lightmap Resolution` - Enable texture compression in production builds --- ## Workflow Tips ### Iterative Baking While developing: 1. Use lower resolution and fewer samples for fast iteration 2. Mark only key objects as lightmapped initially 3. Test in browser frequently 4. Increase quality for final bake ### Combining with Real-Time Lighting You can mix lightmaps with dynamic lights: - Use lightmaps for static ambient lighting - Add dynamic point lights for moving elements - Result: Beautiful base lighting + interactive highlights ### Multiple Lightmap Scenarios Bake different lighting conditions: - Day/night versions - Different seasons - Dramatic vs. natural lighting - Switch between them at runtime --- ## Exporting Lightmaps Lightmaps are exported automatically when you: 1. Save your `.blend` file (if auto-export is enabled) 2. Click `Export` in the Needle Project panel 3. Run `Build: Production` **Output:** - Lightmap textures saved in your project's `assets` folder - GLB file includes lightmap data - Ready to use on the web - no additional setup needed --- ## Advanced: Runtime Control You can control lightmaps from TypeScript: ```ts import { Behaviour, Renderer } from "@needle-tools/engine"; export class LightmapSwitcher extends Behaviour { switchToNightLightmaps() { const renderers = this.gameObject.getComponentsInChildren(Renderer); for (const renderer of renderers) { // Access and modify lightmap data // (specific API depends on your setup) } } } ``` --- ## Experimental Feature Notice :::warning Lightmapping is Experimental The lightmapping plugin is currently experimental. We recommend: - **Creating backups** of your `.blend` files before baking - **Testing thoroughly** before production use - **[Reporting issues](https://forum.needle.tools/?utm_source=needle_docs&utm_content=content)** you encounter Your feedback helps us improve the feature! ::: --- ## Next Steps - **[Texture Compression](/docs/how-to-guides/optimization/compress-textures)** - Optimize lightmap file sizes - **[Deployment Guide](/docs/how-to-guides/deployment/)** - Publish your lightmapped scenes - **[Components Overview](/docs/blender/components)** - Add interactivity to lit scenes --- **Need Help?** - [Discord Community](https://discord.needle.tools) - Ask about lightmapping workflows - [Forum](https://forum.needle.tools) - Share your lightmapped scenes - [Download Example](https://engine.needle.tools/downloads/blender/lightmaps.blend) - Working lightmap sample
